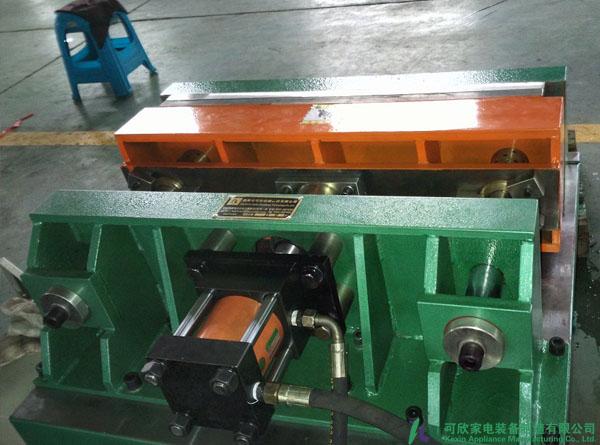

Freezer liner and baseplate occlusion machine

Dimension: Width：750mm

Forming material:The gallbladder of refrigerator tank : δ0.35/L2Y2/L2M

Processing range：The fold angle around the bottom of the gallbladder is 90 degrees, the unilateral length of a right angle side is about 3mm, the specific dimensions shall be carried out according to the dimensions of the product drawings.(The buyer shall provide the product drawings.)Device compression length is 600 mm, the work schedule is adjustable from 10 to 20 mm.

Production takt: no more than 6 seconds/time, no more than 25 seconds/piece.

Operator number: normal operation: 1 person.

Height of production line: the initial plane height of the plate is about 800mm from the ground.

Product qualification rate: equal to or greater than 99.8%.

Equipment color: produce according to party a's color board requirements.

The power supply:The total power capacity: about 4-5KVA(380V 50HZ)
